全自动测油仪不锈钢比色皿坏掉了怎么更换?
更换不锈钢比色皿流程
拧下主机两侧的螺丝
把侧面出来的两根比色皿管推进机壳里面
取出上盖
从侧面取出两根管
从比色池里取出坏掉的不锈钢比色皿

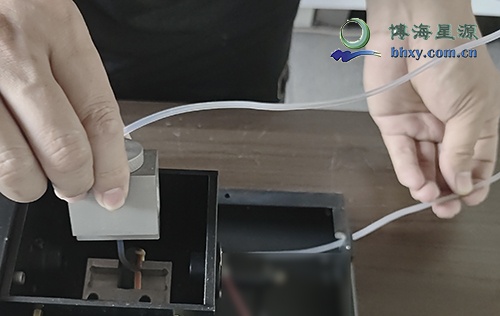

按图示位置将新不锈钢比色皿放入比色池
比色皿下面的管路从比色池底部穿过去取出
比色皿上面的管路安装在机盖上面孔位,比色皿下面的管路安装在机盖下面的孔位。
把管子从机壳里拉出来
盖好盖子,装上螺丝即可。
Stainless Steel Cuvette Replacement Procedure
Unscrew the screws on both sides
Push the two tubes coming out of the side into the housing.
Remove the top cover
Take out the two tubes from the side
Take out the broken stainless steel cuvette from the cuvette.
Put the new stainless steel cuvette into the cuvette as shown in the picture.
Remove the tubing below the cuvette by passing it through the bottom of the cuvette.
The tubing above the cuvette is installed in the upper holes of the cover and the tubing below the cuvette is installed in the holes under the cover.
Pull the tubing out of the housing
Close the cover and install the screws.
